Features:

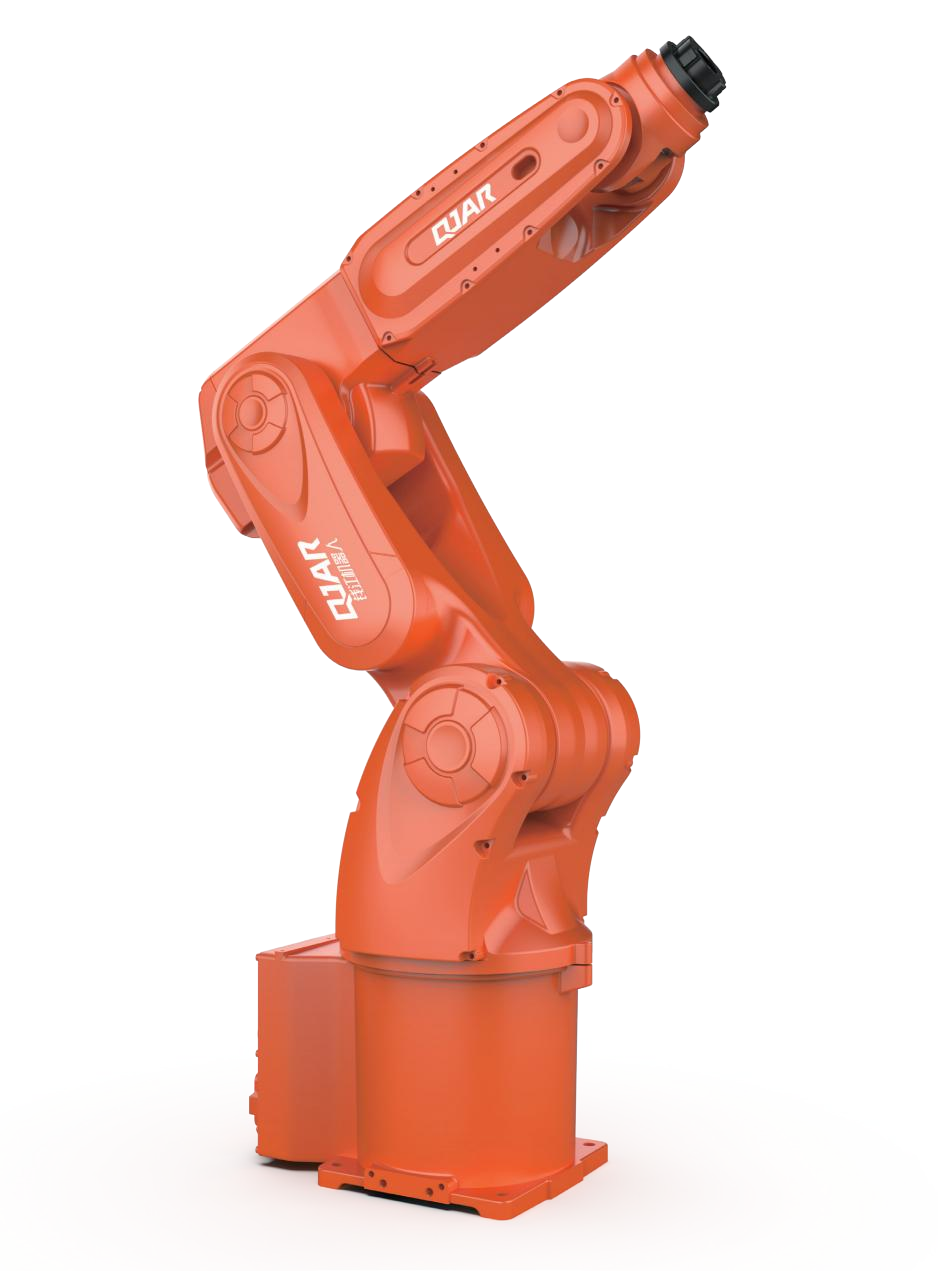

The whole system architecture of the robot is compact, lightweight, large workspace, fast response, high repeatibility positioning accuracy, applicable to transferring, assembling, sorting, loading and unloading applications.
| 机器人基本规格表 Technical Specifications Of Robot | ||||||
| 机构形态 | 垂直多关节 |
允许扭矩 Allowable Torque |
J4 | 11 N·m | ||
| Mechanism | Vertical multi-joint robot | J5 | 11 N·m | |||
| 轴数 | 6 | J6 | 5 .3 N·m | |||
| Axis Number |
惯性力矩 Inertia Moment |
J4 | 0.5 kg·m² | |||
| 有效载荷 | 3/6kg | J5 | 0.5 kg·m² | |||
| Payload | J6 | 0.2 kg·m² | ||||
| 重复定位精度 | ±0.03mm |
安装环境 Installation Environment |
温度 TEMP |
0~45 ℃ | ||
| Repeat Positioning | ||||||
| 最大臂展 | 750.6mm |
湿度 HUM |
20%~80% RH（不结露） | |||
| Max Armspan | No condensation | |||||
| 防护等级 | IP65 |
振动 NVH |
<4.9m/s² (0.5G) | |||
| Protection Degree | ||||||
| 本体重量 | 39kg |
其他 Others |
避免易燃、腐蚀性气体和液体； | |||
| Robot Body Weight | Avoid flammable,corrosive gases and liquids; | |||||
|
机械限位范围 Motion Range |
J1 | ±172° | 避免接触水、油、粉尘等； | |||
| J2 | +132°，-82° | Avoid contact with water,oil,dust,etc.; | ||||
| J3 | +65°，-190° | 勿接近电器噪音源。 | ||||
| J4 | ±172° | Do not approach electrical noise source. | ||||
| J5 | ±120° |
电源容量 Power Capacity |
1.4 kVA | |||
| J6 | ±360° | |||||
|
最大速度 Max Speed |
J1 | 366°/s |
电控柜尺寸 Cabinet Size |
610*270*433mm | ||
| J2 | 343°/s | |||||
| J3 | 366°/s |
电控柜重量 Cabinet Weight |
35 kg | |||
| J4 | 372°/s | |||||
| J5 | 475°/s | 电源 Source | 单相 AC220V +10%/-10% One-phase | |||
| J6 | 658°/s | 安装方式Installation | 地面、吊顶 Wall、Ceiling | |||
